中华口腔医学研究杂志(电子版) ›› 2026, Vol. 20 ›› Issue (01) : 34 -39. doi: 10.3877/cma.j.issn.1674-1366.2026.01.005

数智口腔专栏·综述

功能、美学和微创导向的数字化咬合重建:临床路径与关键技术
张新春(), 王昕, 范乐
  1. 中山大学附属口腔医院,光华口腔医学院,广东省口腔医学重点实验室,广东省口腔疾病临床医学研究中心,广州 510055
  • 收稿日期:2025-09-02 出版日期:2026-02-01
  • 通信作者: 张新春

Digital occlusal reconstruction guided by functional, aesthetic, and minimally invasive principles: Clinical pathway and key technologies

Xinchun Zhang(), Xin Wang, Le Fan

  1. Hospital of Stomatology, Guanghua School of Stomatology, Sun Yat-sen University, Guangdong Provincial Key Laboratory of Stomatology, Guangdong Provincial Clinical Research Center of Oral Diseases, Guangzhou 510055, China
  • Received:2025-09-02 Published:2026-02-01
  • Corresponding author: Xinchun Zhang
  • Supported by:
    Natural Science Foundation of Guangdong Province(2022A1515012485)
引用本文:

张新春, 王昕, 范乐. 功能、美学和微创导向的数字化咬合重建:临床路径与关键技术[J/OL]. 中华口腔医学研究杂志(电子版), 2026, 20(01): 34-39.

Xinchun Zhang, Xin Wang, Le Fan. Digital occlusal reconstruction guided by functional, aesthetic, and minimally invasive principles: Clinical pathway and key technologies[J/OL]. Chinese Journal of Stomatological Research(Electronic Edition), 2026, 20(01): 34-39.

咬合重建是治疗牙齿严重磨损和牙列缺损等的重要治疗手段。近年来,数字化技术在咬合重建全流程的应用越来越普及,涵盖了从数据采集到咬合分析,从虚拟设计到修复体制作等流程,极大提高了修复的精准度和诊疗效率。本文通过剖析咬合重建中功能、美学与微创原则指导下的临床路径与关键技术,探讨数字化流程的临床价值与当前局限,旨在为咬合重建数字化全流程应用提供临床借鉴和研发策略。

Occlusal reconstruction serves as a critical approach for severe tooth wear and dentition defects. Recently, digital technology has increasingly integrated into the entire workflow of occlusal rehabilitation, covering data acquisition, virtual design and restoration fabrication, which has significantly enhanced both restoration precision and clinical efficiency. Guided by functional, aesthetic, and minimally invasive principles, this paper systematically reviews the clinical pathways and key techniques in occlusal rehabilitation. Furthermore, it explores the clinical value and current limitations of the digital workflow, aiming to provide clinical insights and research strategies for digital occlusal rehabilitation.

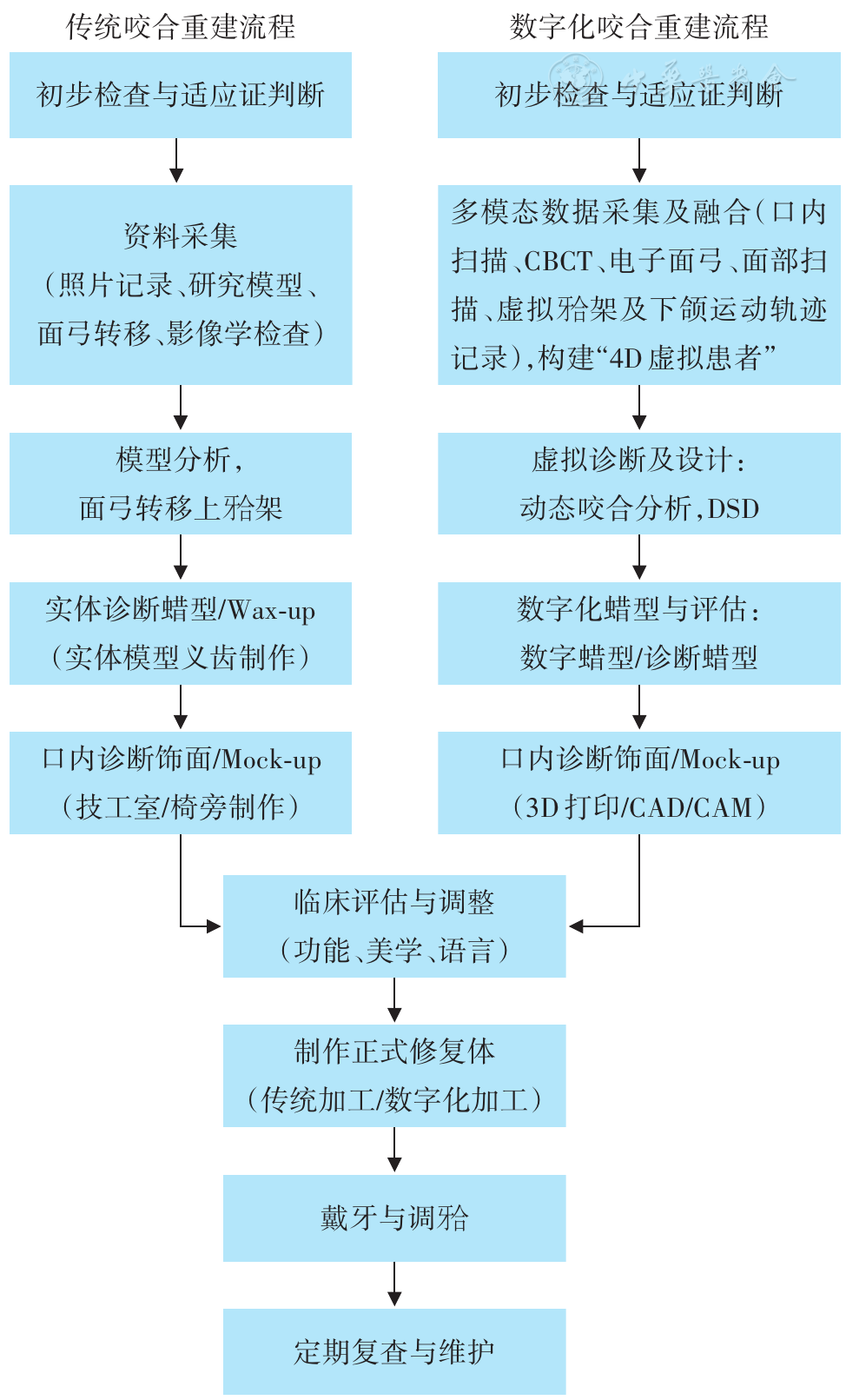

图1 不同方式咬合重建临床路径示意图 CBCT:锥形束CT;DSD:数字化微笑设计;CAD/CAM:计算机辅助设计与制作。

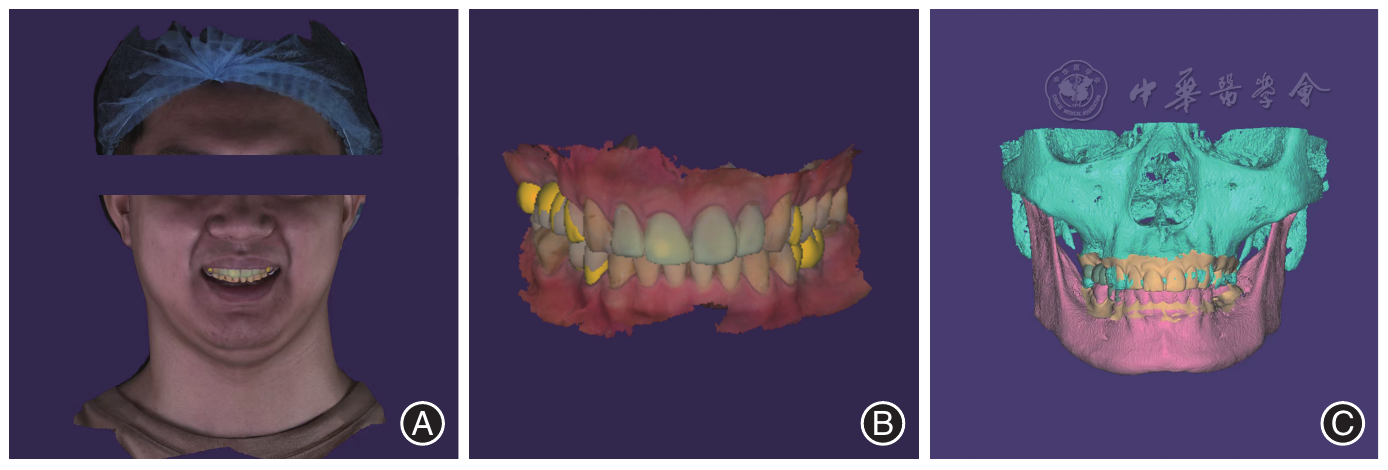

图2 数字化咬合重建多模态数据的获取 A:面部扫描;B:口内牙列扫描;C:颌骨锥形束CT(CBCT)重建。
图3 数字化咬合重建虚拟患者的建立(牙列数据+面部扫描+颌骨数据拟合重建) A:正面观;B:左侧面观;C:右侧面观。

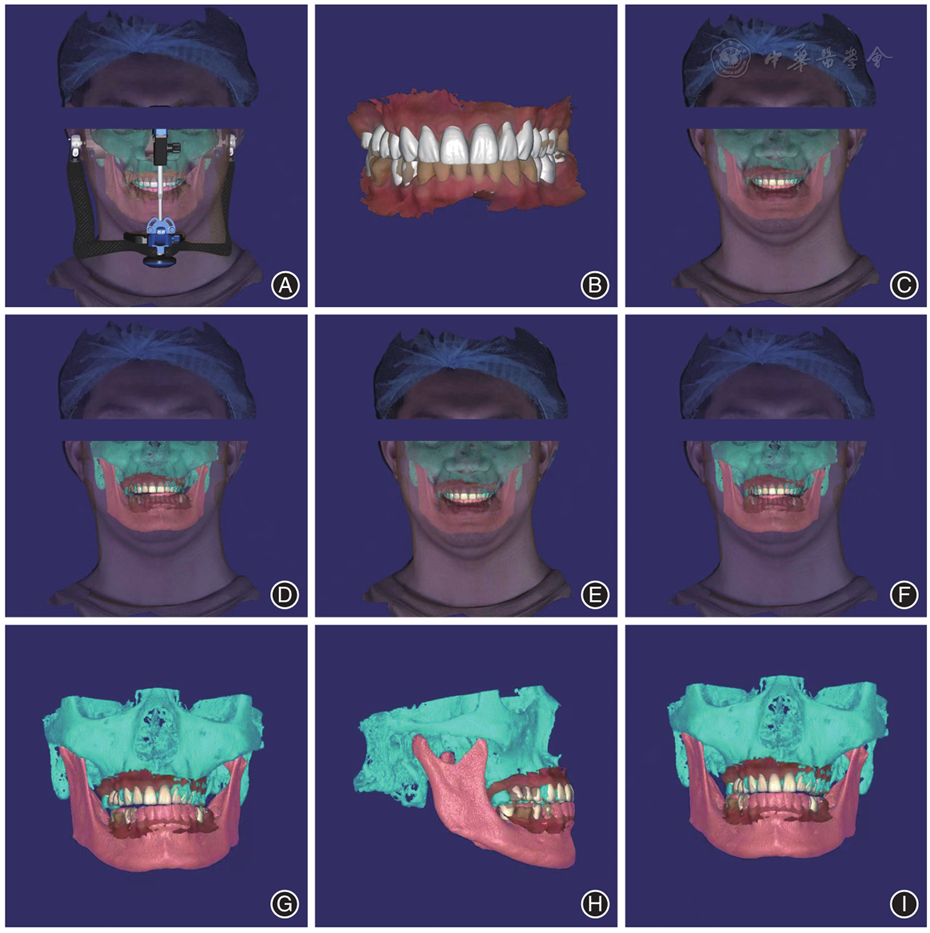

图4 数字化咬合重建虚拟架构建及虚拟美学、咬合设计 A:虚拟患者的虚拟架;B:牙列美学设计;C:美学设计完成后的正面观;D:左侧方咬合时面部观;E:前伸咬合时面部观;F:右侧方咬合时面部观;G:左侧方咬合时虚拟牙列+颌骨拟合;H:前伸咬合时虚拟牙列+颌骨拟合;I:右侧方咬合时牙列+颌骨拟合。
图5 数字化三维打印临时修复体 A:上颌微创诊断饰面;B:下颌微创诊断饰面;C:上颌可摘式咬合板;D:下颌可摘式咬合板。
图6 数字化微创咬合重建示例 A:术前照;B:过渡阶段临时修复体;C:过渡修复稳定后咬合记录及电子面弓分析;D:上颌最终全瓷修复体面观(上前牙舌贴面+上后牙贴面+部分冠微创全瓷修复体);E:下颌最终全瓷修复体舌侧观(下前牙贴面+下后牙贴面+部分冠微创全瓷修复体);F:最终修复体正面观;G:戴牙后正面观;H:最终修复后电子面弓记录及分析;I:戴牙后18个月。
图7 咬合重建中的常见微创修复体 A:舌贴面;B:贴面;C:唇贴面;D:部分冠。
[1]
于海洋,吴嘉诚,税钰森,等.数字化全颌固定咬合重建(一):有牙颌的"5-19N"重建临床技术方案[J].华西口腔医学杂志202543(3):325-335. DOI:10.7518/hxkq.2025.2025003.
[2]
谭建国.一步一步做好牙列重度磨耗咬合重建中咬合关系的复制和转移[J].中华口腔医学杂志202156(8):825-828. DOI:10.3760/cma.j.cn112144-20210708-00318.
[3]
何凯讯,张思慧,陈江.数字化咬合重建的流程管理[J].口腔医学202141(3):193-197. DOI:10.13591/j.cnki.kqyx.2021.03.001.
[4]
程辉.全天然牙列咬合重建修复的数字化路径[J].中华口腔医学杂志202560(8):829-837. DOI:10.3760/cma.j.cn112144-20250408-00125.
[5]
Park MHSon KJin MU,et al. Comparison of interference from eccentric movements of dental crowns fabricated via dynamic jaw motion tracking and conventional methods:A double-blind clinical study[J]. J Adv Prosthodont202517(1):36-46. DOI:10.4047/jap.2025.17.1.36.
[6]
Qiu AXu LZhang Y,et al. Digital-assisted multidisciplinary treatment for complex occlusal rehabilitation:An 18-month follow-up case report[J]. BMC Oral Health202424(1):818. DOI:10.1186/s12903-024-04574-2.
[7]
Anandapandian PARaza FBAr PK,et al. Digital occlusal analysis of the impact of natural dentition and different types of rehabilitation on the occlusal force variations:Systematic review and Meta-analysis[J]. J Oral Biol Craniofac Res202515(3):534-540. DOI:10.1016/j.jobcr.2025.03.006.
[8]
El-Danasory MBKhamis MMAbdel Hakim AA,et al. CAD-CAM custom healing abutments:A dental technique[J]. J Prosthet Dent2024132(3):496-499. DOI:10.1016/j.prosdent.2022.09.019.
[9]
He ZLi RZhang X,et al. Digital workflow of occlusal rehabilitation in partial edentulism based on multifunctional gothic arch tracing devices:A case report[J]. Int J Prosthodont202538(4):483-490. DOI:10.11607/ijp.9207.
[10]
Cacciò CTallarico MLumbau AI,et al. The role of digital workflow in creating a new,esthetic and functional smile in a periodontally compromised patient:A case report[J]. Reports (MDPI)20258(3):105. DOI:10.3390/reports8030105.
[11]
Risciotti ESquadrito NMontanari D,et al. Digital protocol to record occlusal analysis in prosthodontics:A pilot study[J]. J Clin Med202413(5):1370. DOI:10.3390/jcm13051370.
[12]
王宇轩,杨静文,许桐楷,等.数字化颌位关系转移方法应用于咬合重建的精度研究[J].口腔颌面修复学杂志202223(2):115-123. DOI:10.19748/j.cn.kqxf.1009-3761.2022.2.007.
[13]
Alnasser AH. Maxillary and mandibular implant rehabilitation using a completely digital workflow:A technique[J]. J Prosthet Dent2024132(4):687.e1-687.e5. DOI:10.1016/j.prosdent.2024.05.008.
[14]
Saini RSAlshoail HHKanji MA,et al. Virtual articulator software:Accuracy,usability,and clinical applicability:A systematic review[J]. Int Dent J202575(3):1691-1704. DOI:10.1016/j.identj.2025.03.005.
[15]
Azer SS. Simulating mandibular movements and articulator design[J]. J Prosthet Dent2023129(3):377-379. DOI:10.1016/j.prosdent.2023.01.015.
[16]
Schierz OHirsch CKrey KF,et al. Digital dentistry and its impact on oral health-related quality of life[J]. J Evid Based Dent Pract202424(1S):101946. DOI:10.1016/j.jebdp.2023.101946.
[17]
金晓婷,赵维家,罗洁,等.咬合重建:科学与艺术的结合[J].口腔颌面修复学杂志202324(1):1-6. DOI:10.19748/j.cn.kqxf.1009-3761.2023.1.001.
[18]
Alharkan HM. Integrating digital smile design into restorative dentistry:A narrative review of the applications and benefits[J]. Saudi Dent J202436(4):561-567. DOI:10.1016/j.sdentj.2023.12.014.
[19]
Zhivago PTurkyilmaz IYun S. Aesthetic and functional rehabilitation of collapsed occlusal vertical dimension using an advanced digital workflow[J]. Prim Dent J202312(1):57-61. DOI:10.1177/20501684231154320.
[20]
Yue ZGLuoyang ZQHou JX,et al. Application of 3D digital smile design based on virtual articulation analysis in esthetic dentistry:A technique[J]. J Prosthet Dent. 2025133(1):24-30. DOI:10.1016/j.prosdent.2023.11.014.
[21]
Morón-Conejo BGil ABonfanti-Gris M,et al. Esthetic and functional rehabilitation:Retreatment of anterior fixed dental prothesis with biologically oriented preparation technique and digital workflow[J]. J Esthet Restor Dent202537(3):761-770. DOI:10.1111/jerd.13393.
[22]
Ma YLi WLi L,et al. Clinical evaluation of 3D printed splint in the treatment of temporomandibular disorders[J]. BMC Oral Health202525(1):1263. DOI:10.1186/s12903-025-06622-x.
[23]
Ioannidis APitta JPanadero RA,et al. Rehabilitation strategies and occlusal vertical dimension considerations in the management of worn dentitions:Consensus statement from SSRD,SEPES,and PROSEC conference on minimally invasive restorations[J]. J Esthet Restor Dent202537(3):702-706. DOI:10.1111/jerd.13432.
[24]
Matos TPda Cruz KRFavoreto MW,et al. Clinical performance of an ormocer-based single-shade resin composite for the restoration of non-carious cervical lesions:18-month randomized clinical trial[J]. J Dent2025153:105519. DOI:10.1016/j.jdent.2024.105519.
[25]
Orta ANewberry NTorosian A,et al. Advanced adhesive approach to support a minimally invasive full mouth rehabilitation[J]. J Esthet Restor Dent202537(1):156-164. DOI:10.1111/jerd.13355.
[26]
Caetano GMSlomp CAndrade JP,et al. Partial ceramic veneer technique for challenging esthetic frontal restorative procedures[J]. Dent J(Basel)202311(4):101. DOI:10.3390/dj11040101.
[27]
Gong NWang LXu L,et al. Digital occlusal reconstruction in patients with failed veneer restorations with full mouth severely worn teeth[J]. J Esthet Restor Dent202537(7):1667-1680. DOI:10.1111/jerd.13465.
[28]
Feng YZhan LSun X,et al. A fully digital workflow to register maxillomandibular relation using a jaw motion tracer for fixed prosthetic rehabilitation:A technical report[J]. J Esthet Restor Dent202335(7):1068-1076. DOI:10.1111/jerd.13058.
[29]
孙欣荣,冯玥,刘伟才.多模态数据融合的可视化技术在咬合重建中的应用[J].华西口腔医学杂志202240(4):468-475. DOI:10.7518/hxkq.2022.04.015.
[30]
Zambrana NSesma NFomenko I,et al. Jaw tracking integration to the virtual patient:A 4D dynamic approach[J]. J Prosthet Dent2024131(3):370-374. DOI:10.1016/j.prosdent.2022.02.011.
[31]
Liu HHe ZXie C,et al. A digital workflow for full-mouth rehabilitation using CAD-CAM tooth reduction template[J]. J Prosthodont202433(9):926-931. DOI:10.1111/jopr.13914.
[32]
del Cisne Maldonado KEspinoza JAAstudillo DA,et al. Resistance of CAD/CAM composite resin and ceramic occlusal veneers to fatigue and fracture in worn posterior teeth:A systematic review[J]. Dent Med Probl202461(3):417-426. DOI:10.17219/dmp/157347.
[33]
沈冬妮,施莹,傅柏平.后牙贴面修复的研究进展[J].国际口腔医学杂志202148(3):287-291. DOI:10.7518/gjkq.2021030.
[34]
Charoenporn WSornsuwan TSae-Lee D,et al. Evaluating fatigue resistance in occlusal veneers:A comparative study of processing techniques and material thickness of lithium disilicate (IPS e.max Press vs. IPS e.max CAD)[J]. BMC Oral Health202424(1):1542. DOI:10.1186/s12903-024-05347-7.
[35]
Paqué PNGantner CMätzener KJ,et al. Load-bearing capacity,internal accuracy and time-efficiency of heat-pressed,milled and 3D-printed lithium disilicate ultra-thin occlusal veneers[J]. Dent Mater202440(10):1602-1610. DOI:10.1016/j.dental.2024.07.017.
[36]
Grande FPavone LMolinelli F,et al. CAD-CAM complete digital dentures:An improved clinical and laboratory workflow[J]. J Prosthet Dent2025133(6):1430-1435. DOI:10.1016/j.prosdent.2024.11.016.
[37]
Zhu JWei JAnniwaer A,et al. Esthetic rehabilitation of labial tooth defects caused by caries of the anterior teeth using a composite resin injection technique with veneer-shaped 3D printing indices[J]. J Prosthodont Res202569(1):127-132. DOI:10.2186/jpr.JPR_D_24_00051.
[38]
Peng MLi CHuang C,et al. Digital technologies to facilitate minimally invasive rehabilitation of a severely worn dentition:A dental technique[J]. J Prosthet Dent2021126(2):167-172. DOI:10.1016/j.prosdent.2020.05.012.
