3D打印辅助自体牙移植联合术后延期部分活髓切断术1例
吕倩书1, 周明辉2, 彭冬云1, 廖树带1, 郑金国1,()
  1. 1中山市口腔医院口腔特诊科,中山 528400
    2中山市口腔医院口腔正畸科,中山 528400
  • 收稿日期:2026-01-30 出版日期:2026-04-01
  • 通信作者: 郑金国

Autologous tooth transplantation assisted by 3D printing combined with delayed partial pulpotomy postoperatively: A case report

Qianshu Lü1, Minghui Zhou2, Dongyun Peng1, Shudai Liao1, Jinguo Zheng1,()

  1. 1Department of VIP Dental Care, Hospital of Stomatology, Zhongshan City, Zhongshan 528400, China
    2Department of Orthodontics, Hospital of Stomatology, Zhongshan City, Zhongshan 528400, China
  • Received:2026-01-30 Published:2026-04-01
  • Corresponding author: Jinguo Zheng
  • Supported by:
    Social Public Welfare and Basic Research Project of Zhongshan(General Medical and Health Project, 2022B1053)
引用本文:

吕倩书, 周明辉, 彭冬云, 廖树带, 郑金国. 3D打印辅助自体牙移植联合术后延期部分活髓切断术1例[J/OL]. 中华口腔医学研究杂志(电子版), 2026, 20(02): 103-109.

Qianshu Lü, Minghui Zhou, Dongyun Peng, Shudai Liao, Jinguo Zheng. Autologous tooth transplantation assisted by 3D printing combined with delayed partial pulpotomy postoperatively: A case report[J/OL]. Chinese Journal of Stomatological Research(Electronic Edition), 2026, 20(02): 103-109.

报道三维(3D)打印技术辅助自体牙移植联合术后延期部分活髓切断术1例。通过采集患者术前的锥形束CT(CBCT)数据,应用Mimics软件设计构建移植牙3D模板,消毒后指导受植区牙槽窝预备;拔除无保留价值患牙后,利用该导板完成受植窝制备。3D打印辅助的外科手术通过精准制备受植窝,可缩短移植牙离体时间,为移植牙牙周膜存活提供保障。根尖孔直径大小是移植牙牙髓能否发生血运重建的关键因素,本病例供牙根尖孔直径分别为近中根0.68 mm和远中根0.91 mm,术后实现根尖孔直径大的远中牙根的活髓保存,为成熟自体恒牙移植活髓保存提供了新的思路。

This case report presents a successful case of autologous tooth transplantation assisted by three-dimensional (3D) printing technology combined with delayed partial pulpotomy. Preoperative cone-beam computed tomography (CBCT) data of the patient were collected, and Mimics software was used to design and construct a 3D template for the transplanted tooth. After disinfection, the template was used to guide the preparation of the alveolar socket at the recipient site. Following the extraction of the hopeless tooth, the recipient socket was prepared with the aid of the template. 3D printing-assisted digital surgery enabled accurate preparation of the recipient site, reduced the extraoral time of the transplanted tooth, and preserved the viability of the periodontal membrane. The physical dimension of the apical foramen is a critical determinant of revascularization of the transplanted dental pulp. In this case, the apical foramen diameters of the mesial and distal roots were 0.68 mm and 0.91 mm, respectively. Postoperatively, vital pulp preservation was achieved in the distal root with a larger apical foramen. This case provides a novel clinical reference for vital pulp preservation during mature autologous permanent tooth transplantation.

图1 患者初诊时口内像

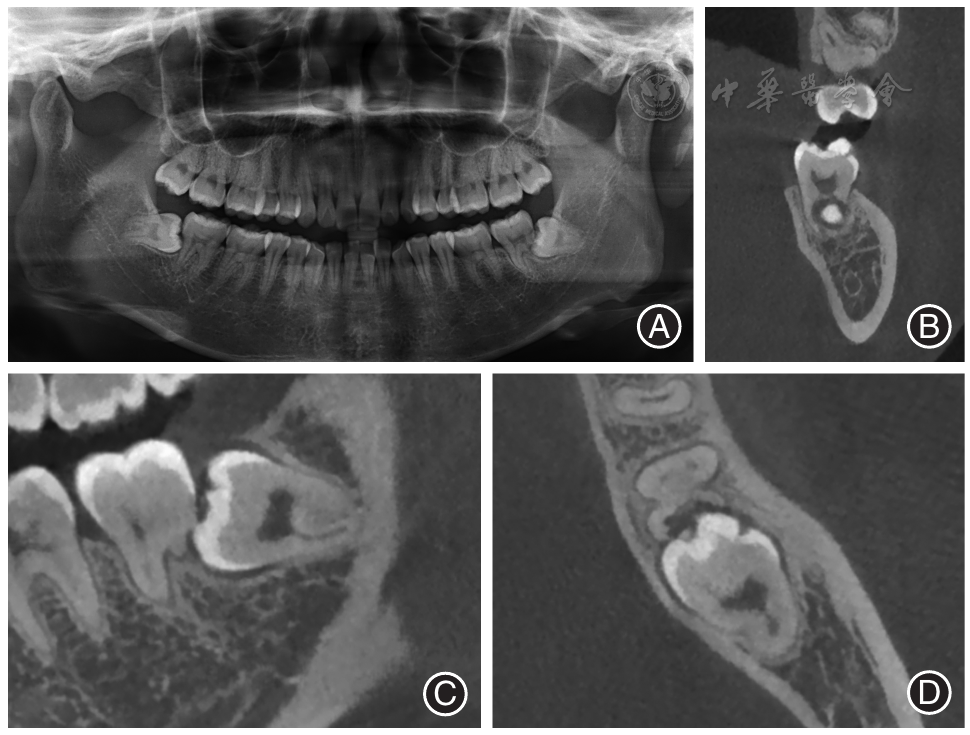

图2 患者术前影像学资料 A:口腔全景曲面体层片示38近中阻生,37远中根吸收破坏;B ~ D:锥形束CT(CBCT)示37远中牙根吸收2/3,37牙槽骨高度及宽度可容纳38牙。

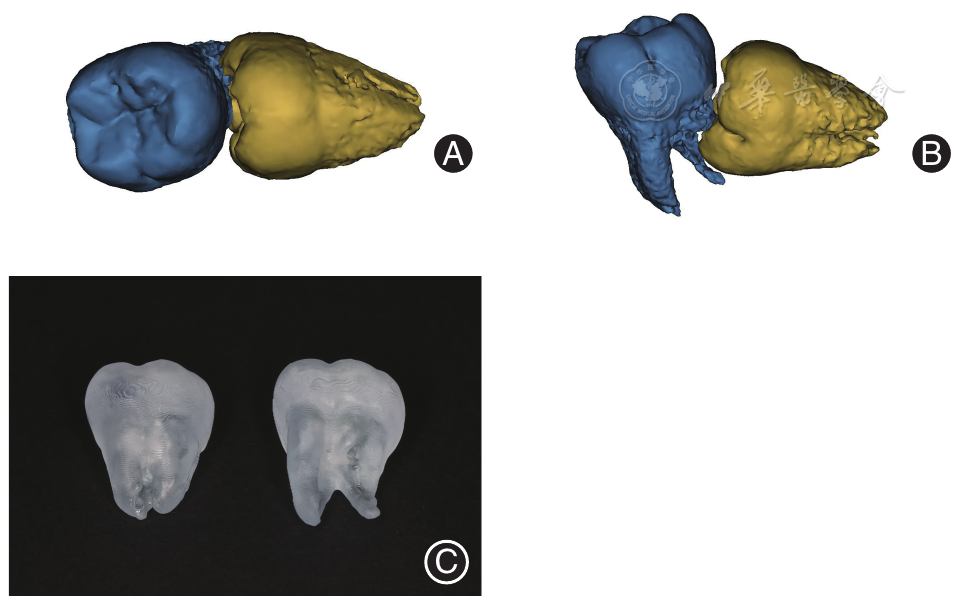

图3 3D数字化供牙模板设计制作 A:咬合面观3D重建模型显示阻生牙38与邻牙37的空间位置关系;B:颊舌面观3D重建模型显示阻生牙38与邻牙37的空间位置关系;C:3D打印的37牙及38供牙模板。
图4 自体牙移植术中照片 A:拔牙后即刻;B:植入后即刻。

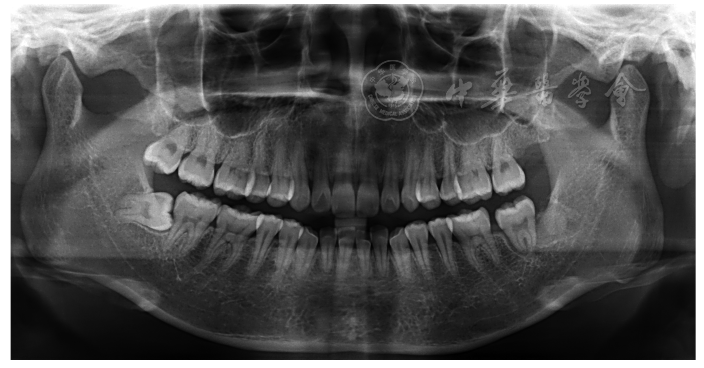

图5 3D打印辅助自体牙移植患者术后1个月口腔全景曲面体层片

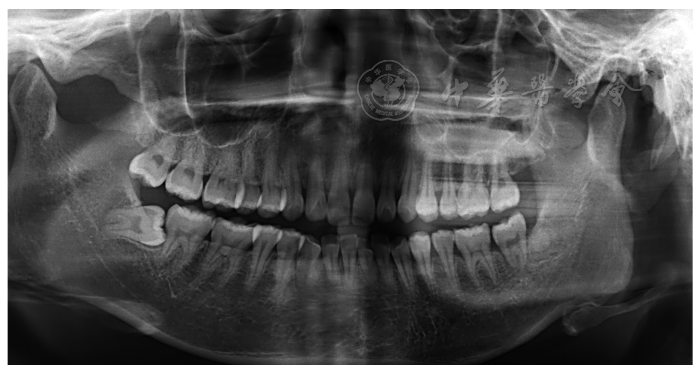

图6 3D打印辅助自体牙移植患者术后3个月口腔全景曲面体层片
图7 3D打印辅助自体牙移植患者术后3个月移植牙远中根活髓切断术治疗过程图片 A:开髓远中牙根见新鲜血液渗出;B:去髓至根管口下方1 mm;C:5.25%次氯酸钠溶液冲洗及止血;D:牙髓断面止血;E:放置盖髓剂;F:树脂封闭远中根管口。
图9 3D打印辅助自体牙移植联合术后延期部分活髓切断术患者术后24个月复查X线片

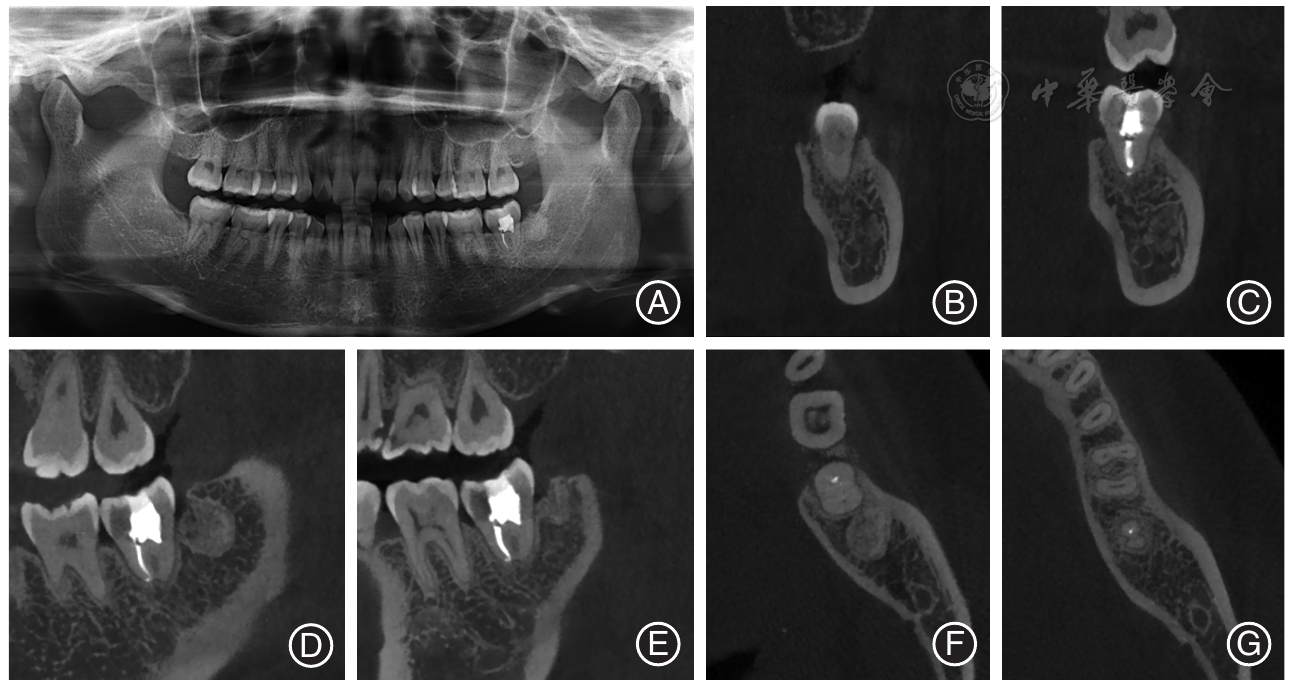

图10 3D打印辅助自体牙移植联合术后延期部分活髓切断术患者术后36个月复查影像学资料 A:口腔全景曲面体层片;B ~ C:冠状面示移植牙骨愈合情况良好;D ~ E:矢状面示移植牙骨愈合情况良好;F ~ G:水平面示移植牙骨愈合情况良好。
[1]
Gupta SGoel MSachdeva G,et al. Autotransplantation[J]. J Conserv Dent201518(6):500-503. DOI:10.4103/0972-0707.168827.
[2]
Tsukiboshi M.自体牙移植[M].侯锐,周宏志,译.北京:人民军医出版社,2013:1-2.
[3]
Yoshino KKariya NNamura D,et al. Risk factors affecting third molar autotransplantation in males:A retrospective survey in dental clinics[J]. J Oral Rehabil201239(11):821-829. DOI:10.1111/j.1365-2842.2012.02325.x.
[4]
Al-Khanati NMKara Beit Z. Reconsidering some standards in immediate autotransplantation of teeth:Case report with 2-year follow-up[J]. Ann Med Surg(Lond)202275:103470. DOI:10.1016/j.amsu.2022.103470.
[5]
Plotino GAbella Sans FDuggal MS,et al. Clinical procedures and outcome of surgical extrusion,intentional replantation and tooth autotransplantation:A narrative review[J]. Int Endod J202053(12):1636-1652. DOI:10.1111/iej.13396.
[6]
Clokie CMYau DMChano L. Autogenous tooth transplantation:An alternative to dental implant placement?[J]. J Can Dent Assoc200167(2):92-96. DOI:10.0000/PMID11253297.
[7]
Ajay SVVishnani R. From concept to clinical practice:A review of autotransplantation techniques and their impact on dentistry[J]. Cureus202416(8):e66904. DOI:10.7759/cureus.66904.
[8]
Sugai TYoshizawa MKobayashi T,et al. Clinical study on prognostic factors for autotransplantation of teeth with complete root formation[J]. Int J Oral Maxillofac Surg201039(12):1193-1203. DOI:10.1016/j.ijom.2010.06.018.
[9]
李永清,惠小勇,许广杰,等.自体牙移植预后的影响因素[J].实用口腔医学杂志202137(4):580-584. DOI:10.3969/j.issn.1001-3733.2021.04.032.
[10]
Mahardawi BRochanavibhata SJiaranuchart S,et al. Autogenous tooth bone graft material prepared chairside and its clinical applications:A systematic review[J]. Int J Oral Maxillofac Surg202352(1):132-141. DOI:10.1016/j.ijom.2022.04.018.
[11]
Han SWang HChen J,et al. Application effect of computer-aided design combined with three-dimensional printing technology in autologous tooth transplantation:A retrospective cohort study[J]. BMC Oral Health202222(1):5. DOI:10.1186/s12903-021-02030-z.
[12]
Cahuana-Bartra PCahuana-Cárdenas ABrunet-Llobet L,et al. The use of 3D additive manufacturing technology in autogenous dental transplantation[J]. 3D Print Med20206(1):16. DOI:10.1186/s41205-020-00070-9.
[13]
de Freitas Coutinho NBNunes FCGagno Intra JB,et al. Success,survival rate,and soft tissue esthetic of tooth autotransplantation[J]. J Endod202147(3):391-396. DOI:10.1016/j.joen.2020.11.013.
[14]
Kamata YShimizu TTsunoda A,et al. Periodontal tissue healing after autologous tooth transplantation:A retrospective analysis of case series[J]. Oral Health Prev Dent202119:619-626. DOI:10.3290/j.ohpd.b2403411.
[15]
Naros ASchulz MFinke H,et al. Autologous tooth transplantation in craniofacial malformations[J]. Cleft Palate Craniofac J202461(9):1429-1438. DOI:10.1177/10556656231170997.
[16]
侯锐,杨霞,许广杰,等.海奥口腔修复膜复合骨填充材料在低位阻生第三磨牙自体牙移植术中的应用[J/OL].转化医学电子杂志20163(6):92-92. DOI:CNKI:SUN:ZHDZ.0.2016-06-040.
[17]
中华口腔医学会牙及牙槽外科专业委员会.自体牙移植术规范化操作流程中国专家共识[J].中国口腔颌面外科杂志202018(5):390-394. DOI:10.19438/j.cjoms.2020.05.002.
[18]
Kwack KHLee HW. Clinical potential of dental pulp stem cells in pulp regeneration:Current endodontic progress and future perspectives[J]. Front Cell Dev Biol202210:857066. DOI:10.3389/fcell.2022.857066.
[19]
Andreasen JOPaulsen HUYu Z,et al. A long-term study of 370 autotransplanted premolars. Part Ⅱ. Tooth survival and pulp healing subsequent to transplantation[J]. Eur J Orthod199012(1):14-24. DOI:10.1093/ejo/12.1.14.
[20]
Abada HMHashem AARAbu-Seida AM,et al. The effect of changing apical foramen diameter on regenerative potential of mature teeth with necrotic pulp and apical periodontitis[J]. Clin Oral Investig202226(2):1843-1853. DOI:10.1007/s00784-021-04159-1.
[21]
吴补领,罗奕菲,徐稳安,等.恒牙牙髓炎的活髓保存治疗[J].口腔疾病防治202129(7):433-441. DOI:10.12016/j.issn.20961456.2021.07.001.
[22]
Park JHKim YGSuh JY,et al. Long-term survival rate of autogenous tooth transplantation:Up to 162 months[J]. Medicina (Kaunas)202258(11):1517. DOI:10.3390/medicina58111517.
[23]
Tsukiboshi MTsukiboshi CLevin L. A step-by step guide for autotransplantation of teeth[J]. Dent Traumatol202339(Suppl 1):70-80. DOI:10.1111/edt.12819.
[24]
Rohof ECMKerdijk WJansma J,et al. Autotransplantation of teeth with incomplete root formation:A systematic review and Meta-analysis[J]. Clin Oral Investig201822(4):1613-1624. DOI:10.1007/s00784-018-2408-z.
[25]
Verweij JPJongkees FAAnssari Moin D,et al. Autotransplantation of teeth using computer-aided rapid prototyping of a three-dimensional replica of the donor tooth:A systematic literature review[J]. Int J Oral Maxillofac Surg201746(11):1466-1474. DOI:10.1016/j.ijom.2017.04.008.
[26]
Jang YChoi YJLee SJ,et al. Prognostic factors for clinical outcomes in autotransplantation of teeth with complete root formation:Survival analysis for up to 12 Years[J]. J Endod201642(2):198-205. DOI:10.1016/j.joen.2015.10.021.
[27]
Alhabshi MAttas SMelebari L,et al. Tooth autotransplantation in a diabetic patient with 2-year follow-up[J]. Gen Dent202169(2):48-50.
